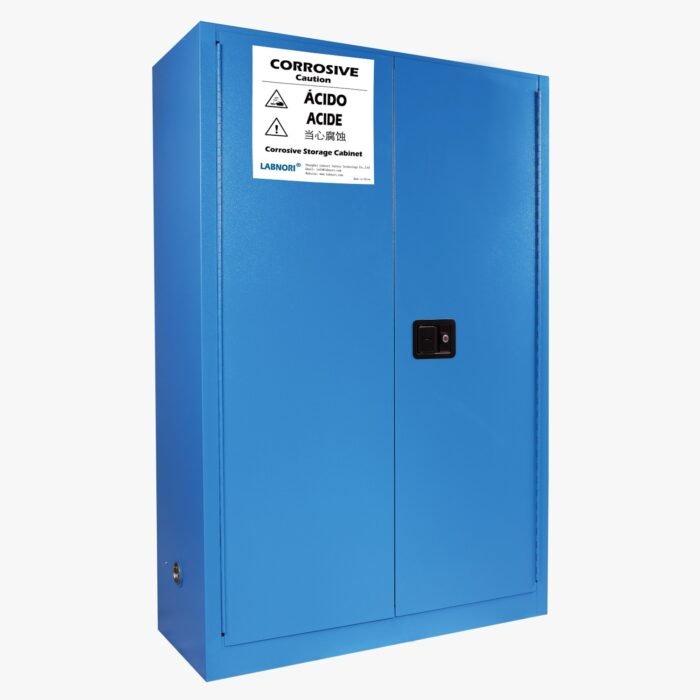

CSC045B Corrosive Cabinet

Double Manual Door Cabinet for Corrosive Chemical Storage

The CSC045B Corrosive Cabinet is designed for research laboratories, industrial facilities, and other environments where corrosive chemicals require appropriate storage and segregation. Separating incompatible liquids, such as acids and bases, is an important consideration when planning chemical storage areas.

The cabinet features a solid steel double-wall construction made from 18-gauge (1 mm thick) steel, with 38 mm of insulated air space. Its double manual doors provide access to the storage compartment, while adjustable shelves allow the interior arrangement to be adapted to different storage requirements.

For spill management, the shelves are designed to direct spills toward the back and bottom of the cabinet into a 2-inch (51 mm) leak-tested sump. The cabinet also includes dual vents with flame arresters, four adjustable self-leveling feet, and a built-in ground connector.

A lead-free epoxy/polyester powder-coated finish provides internal and external resistance to chemicals, corrosion, and moisture, helping maintain the cabinet’s durability in demanding storage environments.

Key Features

• Product model: CSC045B
• Corrosive chemical storage cabinet
• Double manual doors
• 18-gauge (1 mm thick) steel construction
• Double-wall cabinet design
• 38 mm insulated air space
• Adjustable shelves positioned on 3-inch (76 mm) centers
• 2-inch (51 mm) leak-tested spill containment sump
• Shelves designed to direct spills toward the back and bottom
• Dual vents with flame arresters
• Four adjustable self-leveling feet
• Built-in ground connector
• Fully welded and riveted construction
• Lead-free epoxy/polyester powder-coated finish
• Designed for internal and external chemical resistance

Product Specifications

Applications

The CSC045B Corrosive Cabinet may be considered for chemical storage planning in environments such as:

• Research laboratories
• Industrial laboratories
• Chemical handling facilities
• Manufacturing plants
• Quality control laboratories
• Industrial maintenance facilities
• Research and development environments
• Facilities that store corrosive liquids
• Workplaces requiring organized chemical storage

The cabinet’s suitability should be verified against the specific chemicals being stored, their compatibility, and the applicable storage requirements.

Benefits

Durable Steel Construction

The 18-gauge steel body and double-wall construction provide a robust cabinet structure for chemical storage applications.

Adjustable Storage Shelves

Shelves adjustable on 3-inch (76 mm) centers allow the internal storage arrangement to be adapted to different container sizes and storage needs.

Spill Containment Design

The shelves direct spills toward the back and bottom of the cabinet, where a 2-inch (51 mm) leak-tested sump is provided for containment.

Chemical-Resistant Finish

The lead-free epoxy/polyester powder coating is designed to resist chemicals, corrosion, and moisture on the cabinet’s internal and external surfaces.

Practical Cabinet Design

Double manual doors provide access to the cabinet, while four adjustable self-leveling feet help accommodate uneven installation surfaces.

Ventilation and Grounding Features

Dual vents with flame arresters and a built-in ground connector are included in the supplied product specifications. Their suitability for a particular chemical storage application should be assessed according to the manufacturer’s instructions and applicable requirements.

Chemical Storage Safety Considerations

Corrosive chemicals should be stored according to their specific hazards and compatibility requirements. Acids, bases, and other incompatible substances may require separate storage arrangements.

Before using the CSC045B, verify that the cabinet is suitable for the chemicals and containers being stored. Follow the chemical safety data sheets (SDS), workplace procedures, and applicable local regulations. Do not assume that this cabinet is suitable for every chemical or that its construction alone provides a fire-rated storage classification.

Inspect the shelves, sump, doors, finish, vents, and grounding components regularly. Clean up spills according to the relevant chemical safety procedures, and do not store incompatible chemicals together merely because they fit inside the same cabinet.

You may also be interested in:

For additional workplace protection and chemical safety solutions, explore our Chemical Safety Equipment, Laboratory Safety Equipment, and Industrial Safety Equipment categories. You can also link this product to relevant Personal Protective Equipment (PPE), including Chemical-Resistant Gloves, Protective Clothing, and Safety Goggles, to help visitors find complementary products for chemical handling and laboratory operations.

Frequently Asked Questions

What is the CSC045B Corrosive Cabinet?

The CSC045B is a corrosive chemical storage cabinet with double manual doors, steel double-wall construction, adjustable shelves, and a spill containment sump.

What are the dimensions of the CSC045B?

The exterior dimensions are 109 × 46 × 165 cm (width × depth × height).

What material is the cabinet made from?

The supplied specifications identify 18-gauge (1 mm thick) steel with double-wall construction and a 38 mm insulated air space.

Does the cabinet have adjustable shelves?

Yes. The shelves are adjustable on 3-inch (76 mm) centers.

Does the CSC045B include spill containment?

Yes. The cabinet includes a 2-inch (51 mm) leak-tested sump, and its shelves are designed to direct spills toward the back and bottom.

Does the cabinet include ventilation?

Yes. The supplied specifications list dual vents with flame arresters.

What type of doors does the cabinet have?

The CSC045B has double manual doors.

Is the cabinet suitable for all corrosive chemicals?

Not necessarily. Suitability depends on the specific chemicals, their compatibility, container requirements, and applicable regulations. Verify these requirements before use.
